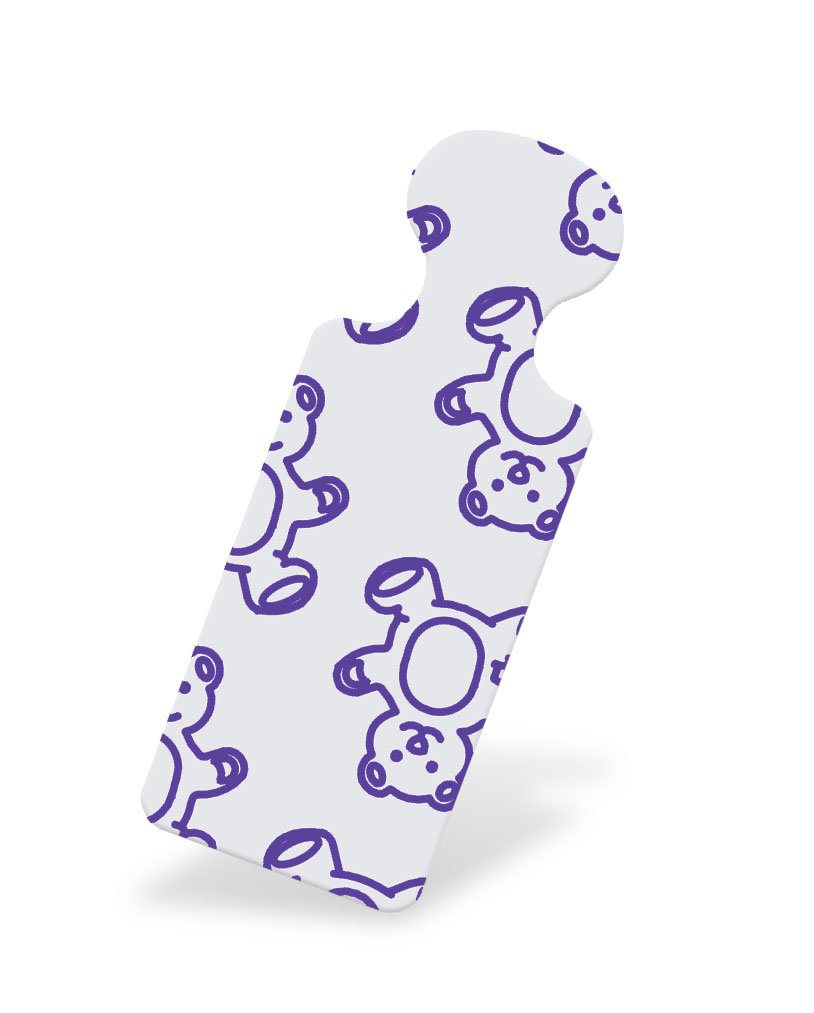

08-TABS A10027

+ View Larger

08-TABS A10027

6502930V - 08 Electrodes - 1 per Ea

Product Line
TenderTrode™

Quantity Per Pouch
100 Per Pouch

Application
Resting ECG TAB Electrodes

Size
0.5 x .901 in / 12.7 x 22.86 mm

Shape
Rectangular

Substrate Material
Synthetic Paper

Gel Type
Conductive Adhesive Hydrogel

Download Spec Sheet

Reference Number
A10027

Duration Of Use
24 Hours

Adhesive Strength
XX

MRI Conditional
No

Cross Reference:

2009101-210 EQUIVALENT

402207-810 EQUIVALENT

Load More +

| Hide All

Price:

Min Qty
1,000 Ea

Pkg. Multiple
1,000 Ea

UOM
Ea

# Per UOM
1

More Information

Graphic Controls Part Number:	6502930V
Product Type:	Medical
OEM Equipment:	08
Adaptor
Xray Translucent	No
Shelf Life (Months)	24
Repositionability	No
Sensor Diameter (in)	n/a
Sensor Diameter (mm)	n/a
Substrate Thickness (in)
Substrate Thickness (mm)
Total Surface Area (in²)	0.4473
Total Surface Area (mm²)	290.322
Gel Area (in²)	0.4473
Gel Area (mm²)	290.322
Adhesive Area (in²)	0.4473
Adhesive Area (mm²)	290.322
Resealable Pouch	Yes
Lead Wire Length (in)	N/A
Lead Wire Color
Adhesive	N/A
Release Liner	PS
Sensor Polymer	N/A
Lead Wire Jacketing	N/A
Lead Wire Cord	N/A
Packaging Material	Paper/PE/Foil/PE
Packaging Size LxW (in)	8.188 x 6.125 x 3.813
Packaging Size LxW (cm)	20.798 x 15.558 x 9.685
Carton Size / Qty (in)
Carton Size / Qty (cm)
Passed ISO 10993	Passed
Latex Free	Yes
Sensitive Skin Compatible
Any Halogenated Hydrocarbon Content	None
Any Pthalate Derivative Content	None
Ro HS Compliance	Yes
REACH	Yes
Regulatory Status	CE Mark according to MDD 93/42/EEC CE marked
ACZ Impedance (Ohm)	32
DC Voltage Offset (mV)	.038
SDR Slope (mV/s)	0.07
ACZ Impedance Repeat (Ohm)	25
COIIN (uV)	7
Bias Current Tolerance (mV)	7
Pediatric	Yes
Foam Sponge Material	N/A
Size Length Width (cm)	17.78 x 12.7
Size Length Width (in)	7 x 5
Integrated Abrader	No
Quantity Per Pouch	100
