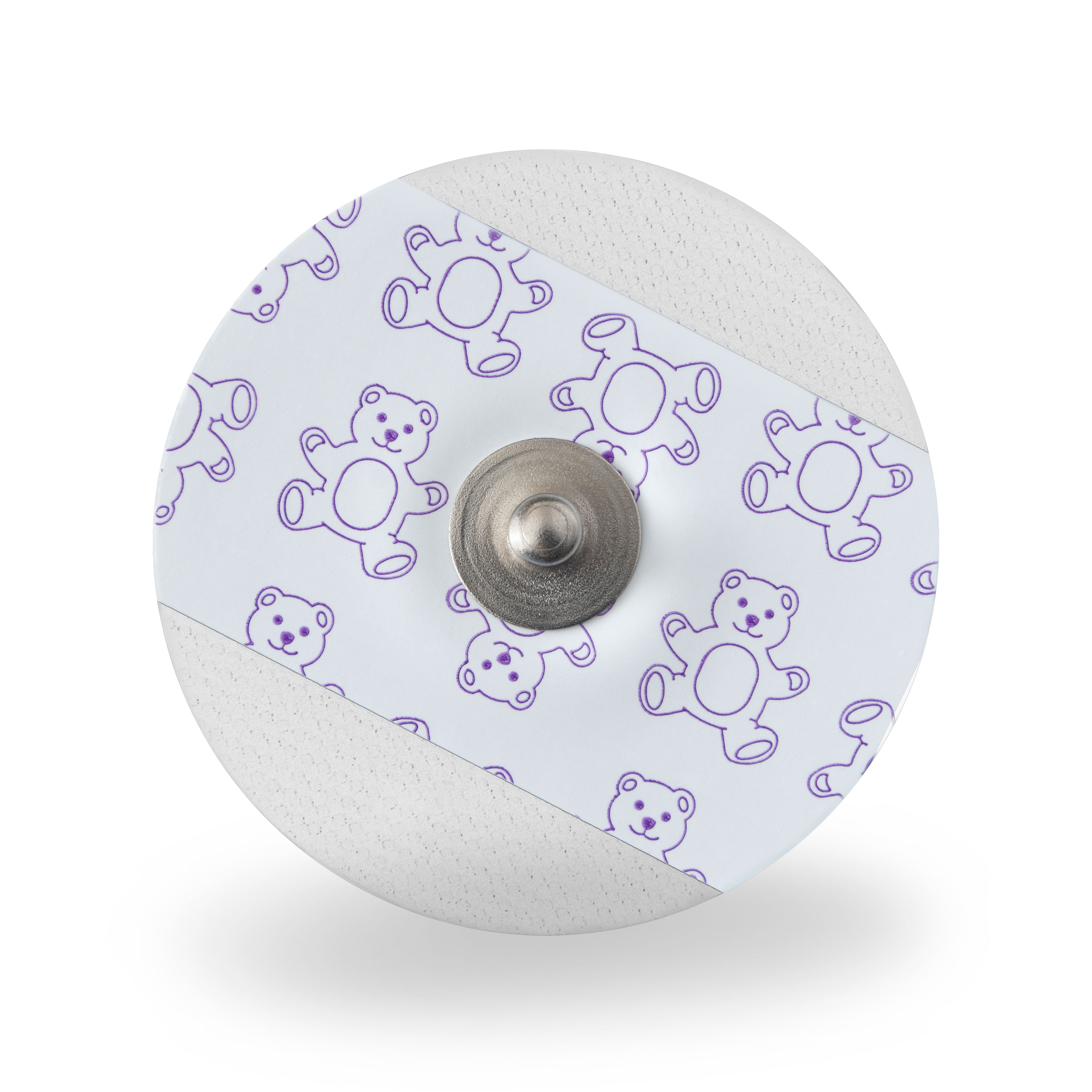

TenderTrode Electrode A10000-60

+ View Larger

6500003V - TenderTrode Electrode Electrodes - 1 per Ea

Product Line
TenderTrode™

Quantity Per Pouch
60 Per Pouch

Application
Infant and Pediatric

Size
1.625 in / 41.275 mm

Shape
Circular

Substrate Material
Polyolefin Tape

Gel Type
Conductive Wet Gel

Reference Number
A10000-60

Duration Of Use
72 Hours

Adhesive Strength
Regular

MRI Conditional
No

Cross Reference:

A10000-60

Load More +

| Hide All

Price:

Min Qty
600 Ea

Pkg. Multiple
600 Ea

UOM
Ea

# Per UOM
1

More Information

Graphic Controls Part Number:	6500003V
Product Type:	Medical
OEM Equipment:	TenderTrode Electrode
Adaptor
Xray Translucent	No
Shelf Life (Months)	18
Repositionability	No
Sensor Diameter (in)	0.42
Sensor Diameter (mm)	10.592
Substrate Thickness (in)
Substrate Thickness (mm)
Total Surface Area (in²)	2.0611
Total Surface Area (mm²)	52.352
Gel Area (in²)	0.3068
Gel Area (mm²)	7.7927
Adhesive Area (in²)	1.7543
Adhesive Area (mm²)	44.5593
Resealable Pouch	Yes
Lead Wire Length (in)	N/A
Lead Wire Color
Adhesive	Acrylic, Medical Grade
Release Liner	PS
Sensor Polymer	Ag/AgCl plated ABS
Lead Wire Jacketing	N/A
Lead Wire Cord	N/A
Packaging Material	Paper/PE/Foil/PE
Packaging Size LxW (in)	12.5 x 7.75 x 8.75
Packaging Size LxW (cm)	31.75 x 19.685 x 22.225
Carton Size / Qty (in)	n/a
Carton Size / Qty (cm)	n/a
Passed ISO 10993	Passed
Latex Free	Yes
Sensitive Skin Compatible
Any Halogenated Hydrocarbon Content	None
Any Pthalate Derivative Content	None
Ro HS Compliance	Yes
REACH	Yes
Regulatory Status	CE Mark according to MDD 93/42/EEC CE marked
ACZ Impedance (Ohm)	56
DC Voltage Offset (mV)	0.10
SDR Slope (mV/s)	0.09
ACZ Impedance Repeat (Ohm)	53
COIIN (uV)	5
Bias Current Tolerance (mV)	7
Pediatric	Yes
Foam Sponge Material	Polyurethane Reticulated Foam
Size Length Width (cm)	20.32 x 30.48
Size Length Width (in)	8 x 12
Integrated Abrader	No
Quantity Per Pouch	60
